Double Mitre Cutting Saw With Digtial Display adopts 500mm diamond Saw blade. It is specially used for 45 and 90 degree cutting of aluminum alloy and UPVC profiles. Equipped with two independent cutting heads, one fixed, the other mobile, digital display can be concise and clear cutting length, with a counter to facilitate the calculation of the number of processing.
1. Feature
1.500mm carbide inserts, high machining accuracy and high durability.
2. The spindle has high precision and the saw blade rotates smoothly
3. Pneumatic hydraulic damping cylinder, uniform feeding speed and smooth movement.
4. The feeding system adopts imported linear guide rail pair, with high precision and good stability

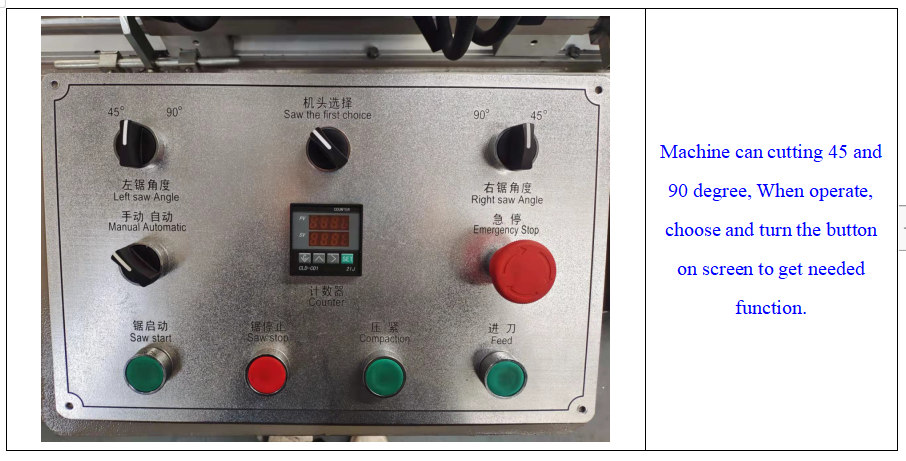

5. Two saw heads are adjustable, cutting profiles of 45°, 90°
6. Automatic opening and closing of the protective cover, safe operation.
7. The right head feed adopts high-lead ball screw, which has high transmission precision, good positioning and stable operation.
8. The machine adopts digital display device.
9. Vertical and horizontal clamping cylinder.
11. Spray cooling system.
WJM-500*4200

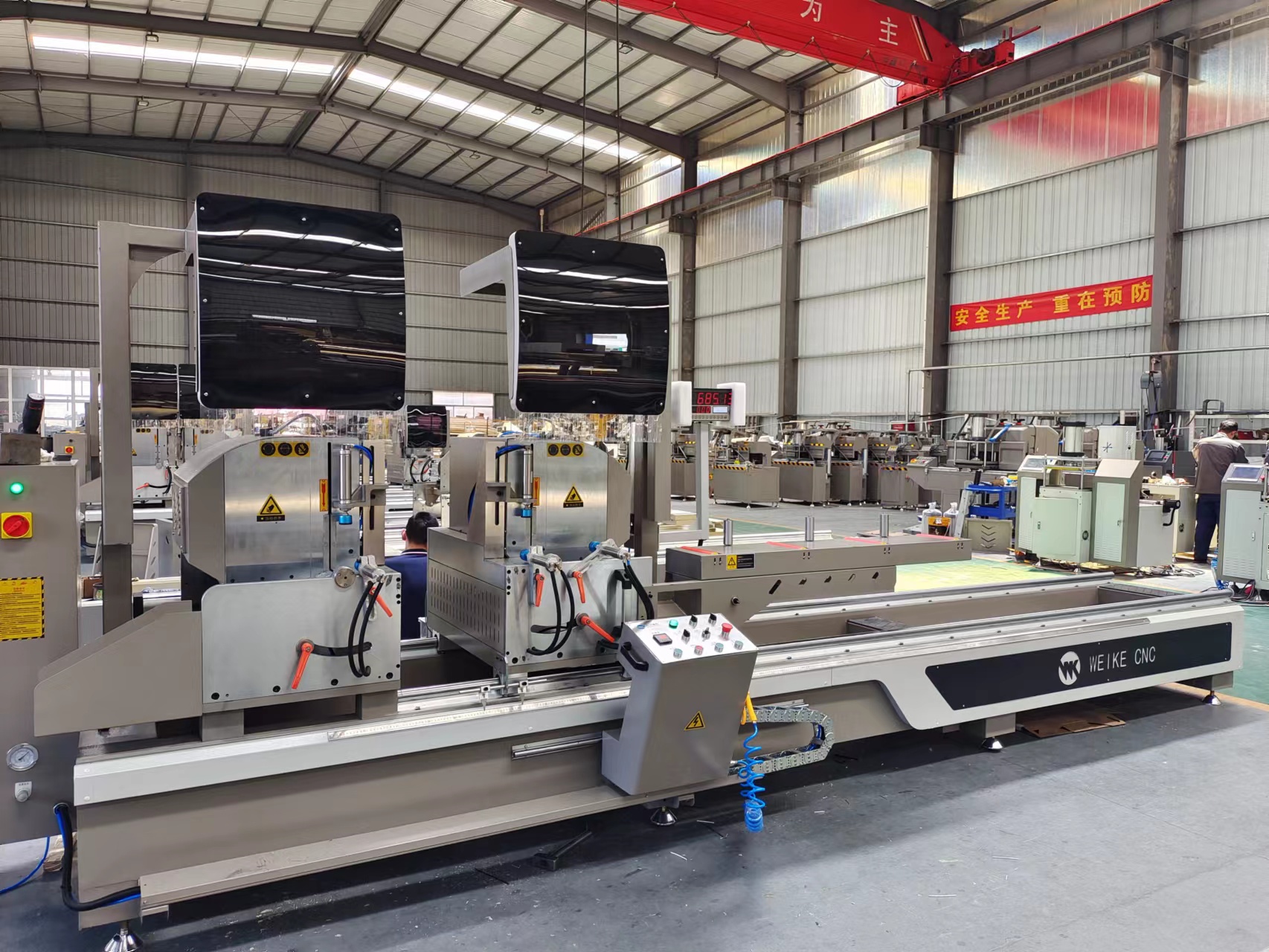

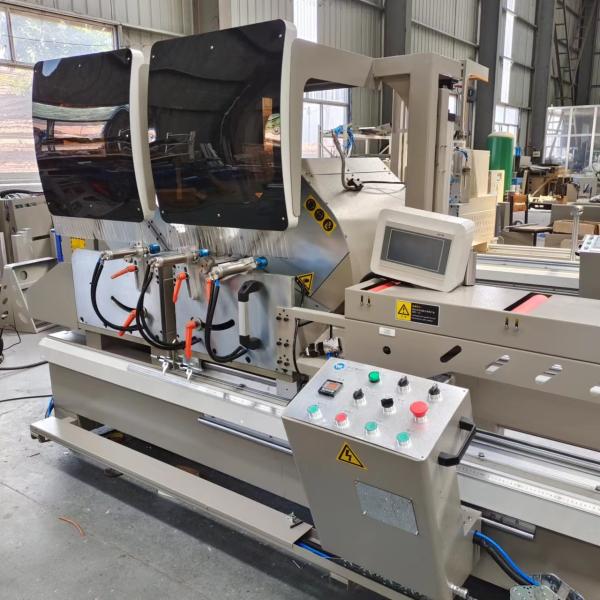

500mm Saw Blade Double Mitre Cutting Saw
| Product Parameter |
| Input power | 4.4kw+0.75KW (550,600 saw blade use 6KW+0.75KW) |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | φ500,Φ550,φ600 |
| Cutting angle | 90°,45° |
| Cutting length | 380~4200mm |
| Cutting width*height | φ500 | 150*180mm (45 degree) |
| 150*240mm (90 degree) |
| Φ550 | 175*205mm (45 degree) |
| 175*265mm (90 degree) |
2.Other products
3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. What are the functions?How to adjust the angle?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
