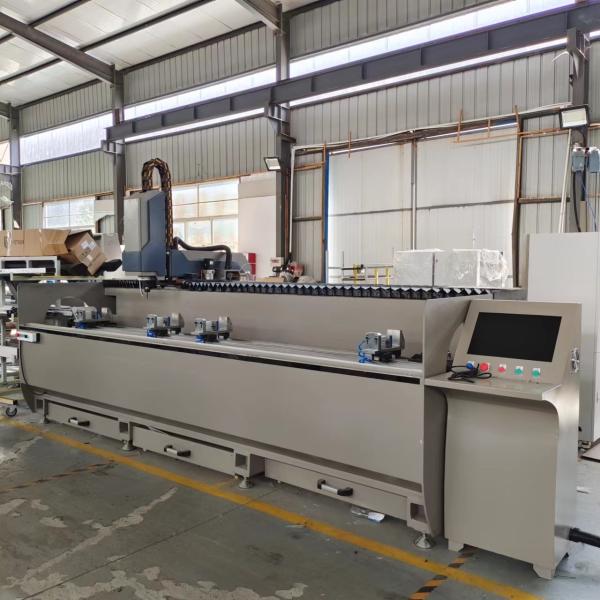

Aluminum Drilling Tapping Machine Window Multi Axis Drilling

Aluminum Profile CNC Drilling Milling Machine

Working area: 3200 mm long

Swivel work table: 90 0 and +90 degrees

Function: Drilling milled holes in aluminum material

1. Main Feature

● it's appropriate for the process of spherical holes, slot holes, key holes, special-shaped holes of industrialaluminum alloy profiles, doors ANd windows, curtain wall Al alloy profiles, and aluminum profile milling, chamfering, plane engraving and alternative processes.
● the most shaft adopts an cool main shaft with an influence of 6KW and a rotation speed of 6000 to 18000 revolutions/min. it's high precision, sensible safety and high reliability.
● The system is supplied with skilled graphics library and profile library, that is simple to work and efficient.
● The work table is turned 180°, -90°~0°~+90°, the profile are often processed on 3 sides at one time. once process deep through holes (shaped holes), deep hole processing can be accomplished by turning the work table to enhance potency and sensible quality. .
● the automated mercury oil offer system is adopted, and also the cutter adopts a system-controlled spray cooling device.
● the most elements of the machine are product of steel structure, all of that have undergone vibration aging and stress relief treatment to make sure stable operation

2. Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

holes for windows and doors, curtain wall alloy profiles

Milling all type holes on aluminium profile

3. Parameter

●X axis Speed: 60M/min

●Y axis Journey: 400mm

●Overall Size: 4000*2000*2600mm

● X axis Journey: 3200mm

● Y/Z axis Speed: 40M/min

● Z Axis Journey: 300mm

4. Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1.After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
